A dimension measurement without a shipment identity is useless. A barcode read without dimension data requires a separate measurement step. When these two operations happen independently, the result is double-handling: the operator scans the barcode, then moves to a dimensioner, or scans the barcode and manually records the dimensions from a tape measure. Either approach introduces delays, transcription errors, and the possibility of mis-associations where a barcode from one shipment is linked to dimensions captured for a different shipment.

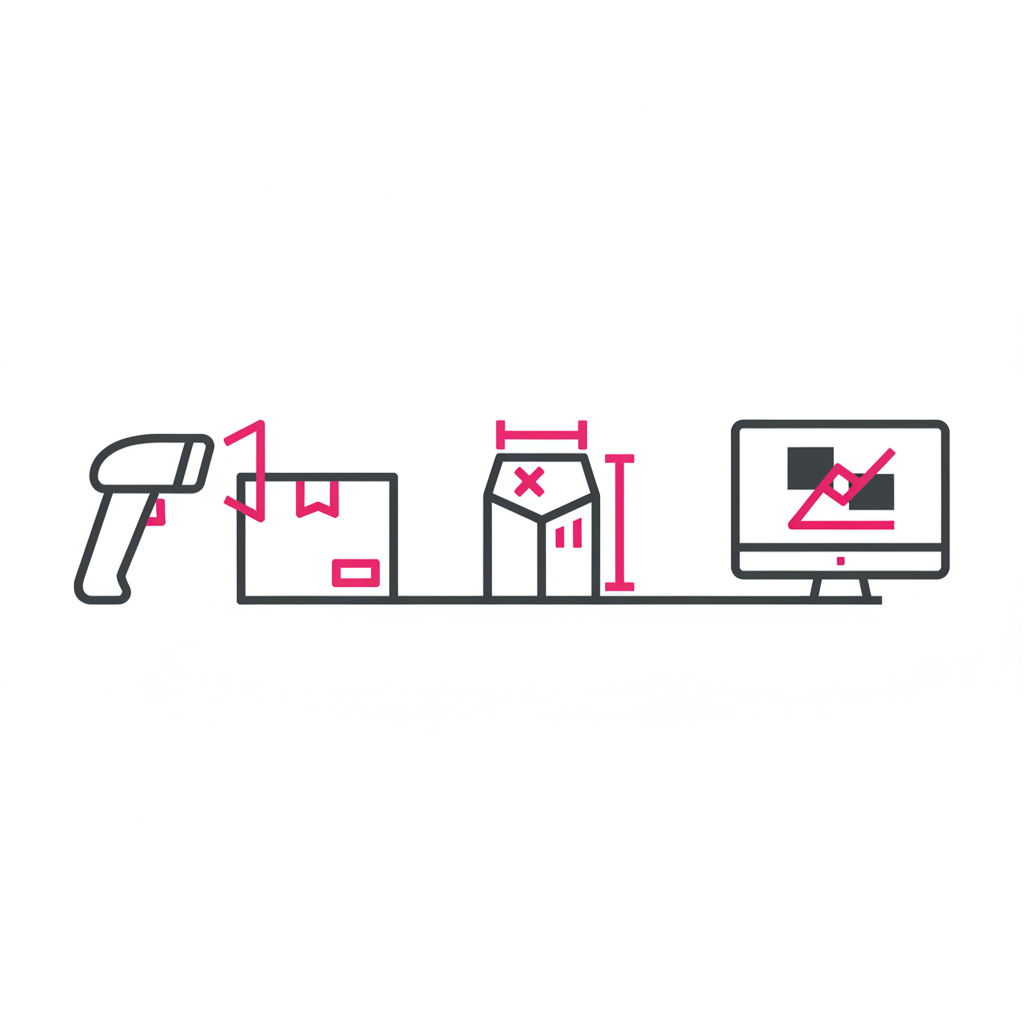

Combined barcode scanning and dimensioning systems eliminate this by capturing both data elements in a single scan event. The barcode is read and the dimensions are captured simultaneously, with the measurement record automatically linked to the shipment identified by the barcode. There is no second step and no opportunity for mis-association.
A combined barcode-dimensioning system integrates two hardware components into a single workflow:
A sensor array (laser line scanner, LiDAR, or 3D camera) captures the length, width, and height of the package or pallet. For static systems, the operator places the item in the measurement zone and the system captures dimensions when the barcode triggers the scan event. For in-motion systems, the measurement is captured as the item passes through the sensor field on a conveyor.
One or more barcode readers are positioned within or adjacent to the measurement zone. Configurations include:
Static combined systems are used at receiving stations, packing stations, customer service desks, and other locations where packages are handled individually by an operator.
In a typical kiosk configuration:
Throughput for kiosk-style combined systems is typically 300-1,000 items per hour depending on operator speed and item size variability.
In-motion combined systems integrate a dimensioner, a scan tunnel, and often a checkweigher into a continuous conveyor section. Items move through the measurement zone at conveyor speed (1.5-3 m/s) and are measured and identified without stopping.
The system must correctly associate each barcode read with the dimensions captured for the same item. This association is handled by the measurement controller using photocell timing: the system knows when each item enters and exits the measurement zone, and matches the barcode read that occurred during that time window to the dimensions captured during the same window.
For items with multiple barcodes (such as packages with both a manufacturer barcode and a shipping label), the system is configured to prioritize the correct label type and suppress duplicate reads.
Not every item will have a readable barcode. Common causes of no-reads include:
When a no-read occurs, the combined system typically diverts the item to an exception lane for manual scanning and association. The dimension measurement may still be captured and held in a pending queue until an operator manually scans the barcode and resolves the association.
No-read rates for well-configured scan tunnels are typically 0.5-2% for standard warehouse packaging. Higher rates indicate a labeling quality issue that should be addressed at the source.
The combined system outputs a single record per item containing:
This record is posted to the WMS or TMS via REST API, webhook, or flat file in real time. The WMS uses the barcode to find the corresponding shipment or inventory record and enriches it with the verified dimension data.
Yes. Modern barcode scanners and scan tunnels support 1D barcodes (Code 128, ITF-14, GS1-128), 2D symbologies (QR Code, Data Matrix, PDF417), and RFID tags. The supported symbologies depend on the scanner hardware selected; most systems can be configured to read multiple symbology types simultaneously.
For static kiosk systems, the operator must orient the package so the barcode is visible to the scanner. For scan tunnels with 5-sided or 6-sided reading, barcodes on the bottom of the package can be read from below if the conveyor has a gap for the bottom scanner. Alternatively, some operations print labels on multiple sides to ensure at least one is readable in any orientation.
The dimension accuracy of a combined system is determined by the dimensioning hardware, not the barcode reader. Most commercial combined systems achieve +/-2-5mm linear accuracy, which is within the tolerance for freight billing and WMS integration applications.
No. In well-designed combined systems, barcode reading and dimension capture happen in parallel within the same measurement zone. The throughput of the combined system is determined by the dimensioner's throughput capacity, not the barcode scanner's read speed.
